Capacitive proximity sensors Capacitive proximity sensors are used to sense any material, solid or liquid (water, wood, metals, granules, powders, etc…) even through plastic or glass walls. They feature extremely high electromagnetic compatibility (EMC), with high shock/vibration resistance and minimal sensitivity to dust and moisture, ensuring reliable object detection in harsh industrial environments. Key features: Detects powders, granulates, liquids and solids Sensitivity adjustment Short circuit and polarity reversal protection Protection degree: IP67/68/69K Ambient limits: -20 … +85°C LED indication: Incorporated Housing material: Thermoplastic polyester C30 series M30 Capacitive proximity switches Adjustable sensitivity via potentiometer Standard output: NO and NC SERIES C30P series DESCRIPTION M30 capacitive proximity switches SUPPLY PROTECTION Short circuit and polarity reversal protection INDEX PROTECTION IP IP67 / 68 / 69K LED INDICATION Incorporated HOUSING MATERIAL Thermoplastic polyester SUPPLY VOLTAGE 15 – 40 VDC FLUSH Yes NON-FLUSH No SENSING DISTANCE 2..16 mm PNP Yes NPN No NO Yes NC Yes CONNECTOR M12 plug (4 pin)

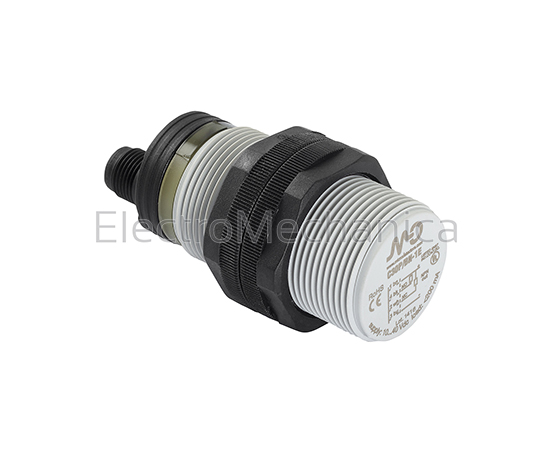

M30 2-16mm PNP/NO/NC CAP PROXI
Capacitive proximity sensors
ElectroMechanica
C30P/BP-1E
