AD series M5 standard body proximity switches Extremely reduced models: M5 x 30 mm (cable) / 38 mm (plug) length Key features: LED output indicator Output current: 100 mA Cable and M8 plug output Totally protected against electrical damages SERIES AD series DESCRIPTION M5 cylindrical miniaturized inductive sensors SENSING TYPE Long sensing distance SUPPLY PROTECTION Short circuit and polarity reversal protection INDEX PROTECTION IP IP67 LED INDICATION Incorporated HOUSING MATERIAL Stainless steel AISI 303 SUPPLY VOLTAGE 10 – 30 VDC FLUSH Yes NON-FLUSH No SENSING DISTANCE (MM) 1.5 mm PNP Yes NPN No NO Yes NC No CONNECTOR Cable (3 wire) BODY LENGTH 30 mm

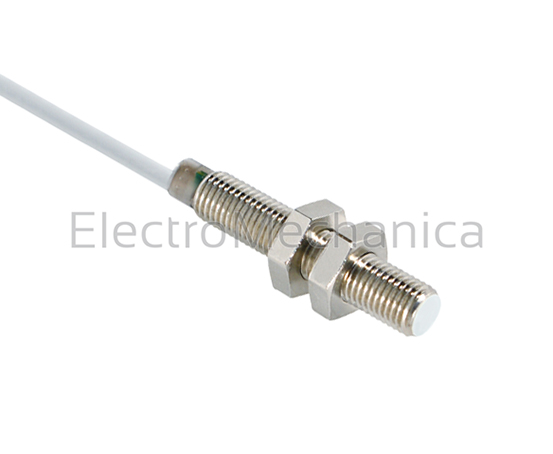

M5 1.5mm PNP NO 10-30VDC PROXI
Inductive proximity sensors
ElectroMechanica
AD1/AP-3A
