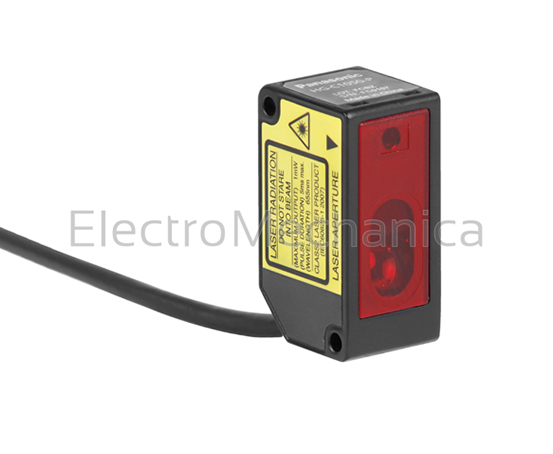

HG-C series measurement sensor HG-C measurement sensors measure and indicate measured values in mm as well as analog voltage outputs. The data can be used for various calculations and storage (logging) when the output is sent to a PLC + analog unit. Key features: Indicates real measurements Accurate Linearity: +/-0.1% F.S Equipped with 0-5V analog output Reliable detection in 10 ¼m precision (for HG-C1030) SERIES HG-C series DESCRIPTION Micro laser distance/measurement sensor (with built-in amplifier) SUPPLY VOLTAGE 12 – 24 VDC REPEATABILITY 200 ¼m MEASUREMENT CENTER DISTANCE (MM) 200 MEASUREMENT RANGE 80 PNP Yes NPN No CONNECTOR Cable
HG-C1200-P
