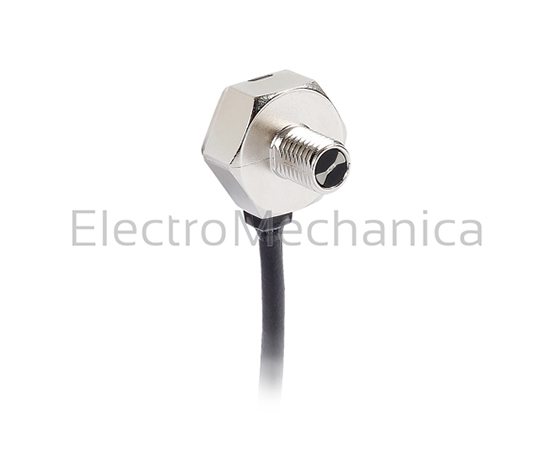

Threaded miniature photoelectric sensors With an M4 thru-beam type and an M6 reflective type sensor, the user has a series of miniature photoelectric sensors at his disposal. In addition to being quick and easy to install, the EX-30 series sensors’ integrated signal amplifier, stable mechanical properties, and robust, zinc housing make it an attractive alternative to photoelectric sensors with fiber cables. New design solves all weak points of fiber sensors The EX-30 series solves all of the difficulties associated with fiber sensors, such as: Fragility of the fiber Difficulty finding a suitable place for the amplifier Extra space needed because of difficulty in bending the fiber The nuisance of having to use a protective tube to prevent fiber breakage Key features: Less power consumed An alternative to fiber sensors 800mm thru-beam type available (EX-33-PN) SERIES EX-30 DESCRIPTION Threaded miniature photoelectric sensors SENSITIVITY ADJUSTMENT Yes SUPPLY VOLTAGE 12 – 24 VDC DIFFUSED No RETRO-REFLECTIVE No POLARISED RETRO No THROUGH-BEAM Yes SENSING DISTANCE (MM) 800 PNP Yes NPN No LIGHT-ON Yes DARK-ON Yes CONNECTOR Cable INDEX PROTECTION IP IP67 OUTPUT PNP/NPN pen-collector transistor maximum 50mA LED INDICATION Orange (operation) / green (stability) DIMENSIONS (MM) (H) 15.6 x (W) 14 x (D) 18
EX-33-PN
