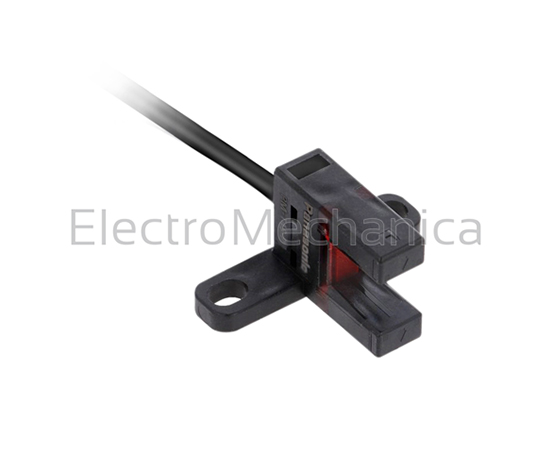

PM series U type miniature sensor Key features: Multi-angle operation indicator Beam marks for easy adjustment All models easy to mount with M3 screws Large and easy-to-see operation indicator Three protection circuits standard on all models Increased beam emitting / receiving distance of 6 mm SERIES PM series DESCRIPTION U type miniature photoelectric sensor SUPPLY VOLTAGE 5 – 24 VDC DIFFUSED No RETRO-REFLECTIVE No POLARISED RETRO No THROUGH-BEAM Yes SENSING DISTANCE (MM) 6 PNP Yes NPN No LIGHT-ON Yes DARK-ON Yes CONNECTOR T type OUTPUT PNP/NPN open-collector transistor max. 50mA LED INDICATION Orange (light received) HOUSING MATERIAL PBT INDEX PROTECTION IP64 DIMENSIONS (MM) 18 mm x 60 mm CABLE CONNECTION 1 meter
PM-T45-P
