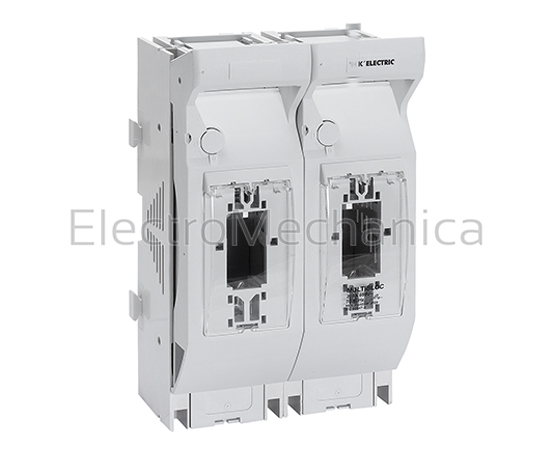

MULTIBLOC series – NH-fuse switch disconnector > (for panel mounting) Parking position of the switch cover (even with inserted fuse-links ) Modular terminal covers can be extended as required Lid lock and lid seal (with optional accessories) Rated operational voltage: 690 V Insulation voltage Ui: 1000 V Rated impulse withstand Uimp: 8 kV SERIES Multibloc series NUMBER OF POLES 2 FUSE SIZE NH1 MAXIMUM CURRENT 250A CABLE TERMINAL M10 DESCRIPTION Fuse switch disconnectors RATED OPERATIONAL VOLTAGE 690V MOUNTING Panel mount DIMENSIONS (H) 184 x (W) 142 x (D) 84
NH1 2P FUSE SWITCH DISCONN 250A
Fuse switch disconnectors
ElectroMechanica
143118
