FX series fibre-optic amplifiers PANASONIC has developed a new top price fibre sensor. The quick set mode allows inexperienced operators to use the sensor quickly. For experienced operators, the setting and PRO mode are available. Key features: Easy to read Key-lock function Teaching, light-ON / dark-ON setting One 4-digit green, one 4-digit red LCD display Direct installation possible without bracket or DIN rail Commercially available connector simplifies procurement Threshold values can automatically adjust to changes in incident light No need to connect amplifiers in case interference prevention is requested Intensity of emitted light can be reduced automatically to ensure stable sensing Designed in a 3-layer structure to accomodate basic through advanced settings SERIES FX series DESCRIPTION Dependant on fibre used SUPPLY VOLTAGE 12 – 24 VDC PNP Yes NPN No LIGHT-ON Yes DARK-ON Yes CONNECTOR M8 plug (4 pin) SENSITIVITY SETTING 2-point teaching / Limit teaching / Full-auto teaching TIMER FUNCTION ON-delay, OFF-delay, no timer (selectable) 1 – 1000 ms LED INDICATION Orange LED when output is ON / Red and Green 4 digit display INDEX PROTECTION IP40 MOUNTING DIN rail mounting or side mounting with 3.2 mm screws DIMENSIONS (MM) (H) 32 x (W) 9 x (D) 66.4

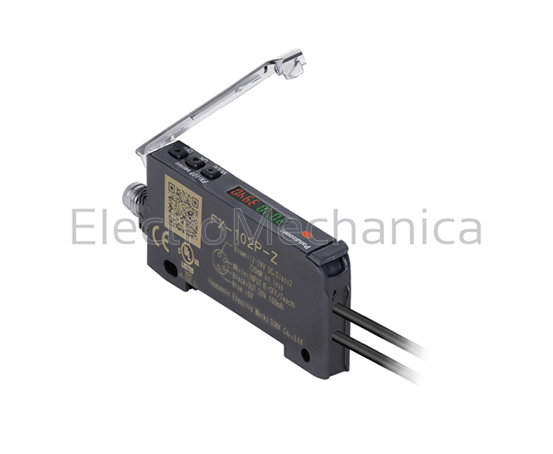

FX102P-Z
