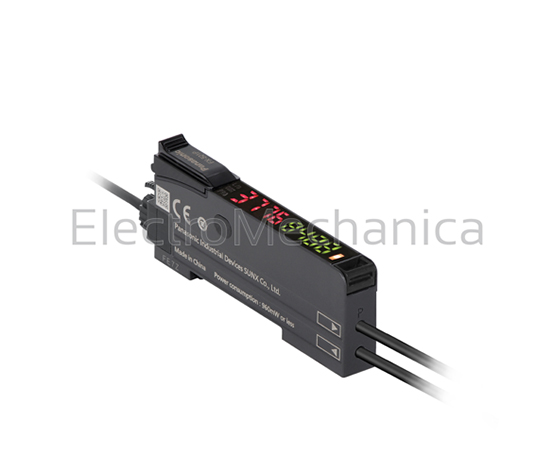

FX-551 series – advanced fibre optic amplifier Significantly improved stability and operation ease, due to industry top emission power: – 3 times higher emission power and 1.6 times longer sensing range than conventional models. – Simplified functions for improved operation ease. Key features: High performance Optimized stability Improved accuracy Hyper mode incorporated SERIES FX-500 series SUPPLY VOLTAGE 12 – 24 VDC DESCRIPTION Dependant on fibre used PNP Yes NPN No LIGHT-ON Yes DARK-ON Yes CONNECTOR Connector with cable SENSITIVITY SETTING 2-point teaching / Limit teaching / Full-auto teaching TIMER FUNCTION ON-delay, OFF-delay, One shot, no timer (selectable) 0.1ms – 32 second INDEX PROTECTION IP40 MOUNTING DIN rail mounting or side mounting with 3.2 mm screws DIMENSIONS (MM) (H) 32 x (W) 10 x (D) 75
FX-551P
