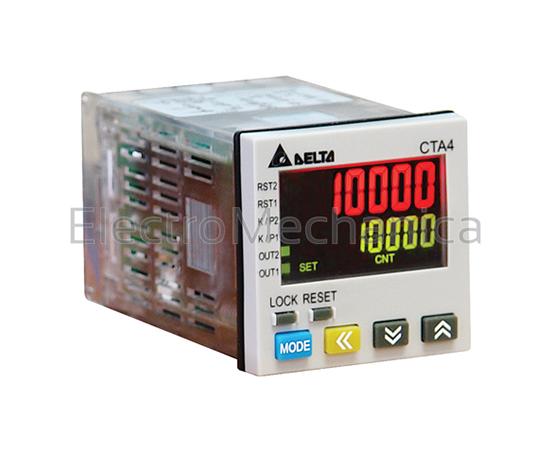

CTA series timer / counter / tachometer CTA 3-in-1 timer/counter/tachometer is able to receive external input signals and calculate the times of events, frequency and speed. The CTA unit can be applied to batch counting, total counting, length measurement. General features: Input: Non-voltage input (NPN) / Voltage input (PNP) Display: Double-line, 6-digit negative transmissive LCD display Output 1 + 2: Relay: SPST max.250 VAC 5A + Transistor: NPN open collector Timer: Timing up or down 0.01 second – 999.999 hours On-delay, interval, repeat (power on, pulse on, pulse off) Counter: Counting up or down 1 or 2 stage, batch, total, dual counting Speed selection: 1/30/200/3k/5k/10k Cps Tachometer: Measurement in Hz (can be configured to read RPM) SERIES CTA series SUPPLY VOLTAGE 100 – 240 VAC OUTPUT 2 Transistor RS458 COMMUNICATION Yes MOUNTING Panel DESCRIPTION Multi-function timer-counter-tachometer
P/MNT TIME/COUNT/TAC RS485 240VAC
Modular timing devices
ElectroMechanica
CTA4001A
