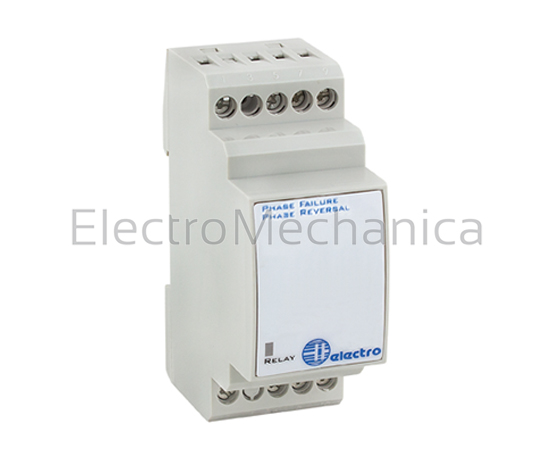

Phase Failure / Reversal Monitor The Electro D range of control and timing devices are compact modular units for easy introduction into standard panels and/or distribution boards. They mount directly onto DIN rail and align with standard miniature circuit breakers (MCB’s). Phase Failure / Reversal Monitor for monitoring three phase supply voltage. The unit is ideal for protection against phase reversal, phase loss and phase imbalance. Features: Monitors own supply 10A SPDT output relay LED indication for relay ON Modular 35.5mm DIN rail mountable High resolution analogue microprocessor Detects phase reversal, loss and imbalance DESCRIPTION Failure/reversal relay CONTACT 10A SPDT INPUT Pin 1, 5 & 9, L1, L2 & L3 RANGE 8% NPS voltage RATED CURRENT 10A RATED VOLTAGE 250V MECHANICAL LIFE 10×106 cycles PROTECTION INDEX IP IP 20 OPERATING TEMPERATURE -10 to + 50°C STORAGE TEMPERATURE -50 to + 85°C DIMENSIONS (MM) (H) 92 x (W) 36 x (D) 64
DPF1525A
