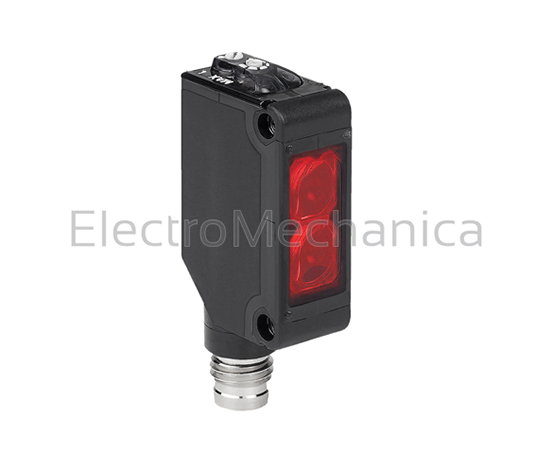

CX-400 series standard compact sensors For the CX-400 series, the user has a large selection of ultra compact photoelectric sensors at his disposal. The series includes three thru-beam, five retroreflective, four diffuse reflective and four trigonometric types with foreground/background suppression. With its new ASIC (application specific integrated circuit), the sensors require up to 60% less energy than before. Key features: Short-circuit protected Light ON/Dark ON modes Up to 60% less power consumption Three thru-beam, five retroreflective, eight reflective types SERIES CX-400 series DESCRIPTION Standard compact sensors SUPPLY VOLTAGE 12 – 24 VDC DIFFUSED No RETRO-REFLECTIVE No POLARISED RETRO No THROUGH-BEAM Yes SENSING DISTANCE (MM) 30 meter PNP Yes NPN No LIGHT-ON Yes DARK-ON Yes CONNECTOR M8 plug (4 pin) OUTPUT PNP/NPN open-collector transistor max. 100mA LED INDICATION Red: (output ON) Green: (stable light received) HOUSING MATERIAL PBT INDEX PROTECTION IP67 DIMENSIONS (MM) (H) 31 x (W) 11.2 x (D) 20
CX-413-P-Z
