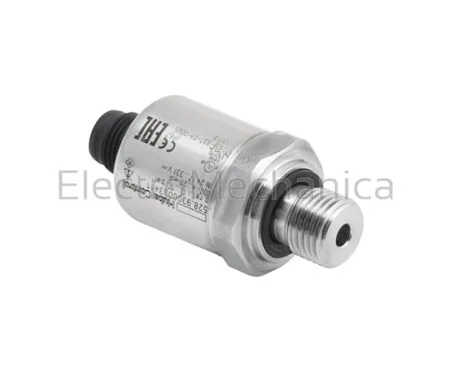

PRESS. TRANSMITTER – M12 G1/4″

528 F001-5 THE COMPACT TYPE 528 PRESSURE TRANSMITTER IS BASED UPON THE WELL PROVEN CERAMIC TECHNOLOGY DEVELOPED BY HUBA CONTROL OVER 20 YEARS AGO. THESE PRESSURE TRANSMITTERS ARE SUITABLE FOR APPLICATIONS ACROSS A BROAD SPECTRUM OF INDUSTRIES..GENERAL FEATURES:. COMPACT, RUGGED CONSTRUCTION LARGE SELECTION OF CONNECTIONS AVAILABLE NEGLIGIBLE TEMPERATURE INFLUENCE ON ACCURACY SAVING TIME BY QUICK CABLE MOUNTING BY THE CUSTOMER WITH SWIFT CONNECTOR .SERIES TYPE 528 .PRESSURE RANGE 0 … 25 .POWER SUPPLY 7 – 33 VDC .OUTPUT DC 4 – 20 MA .ELECTRICAL CONNECTION M12X1 .DESCRIPTION PRESSURE TRANSMITTER .PRESSURE CONNECTION G 1/4 .INDEX PROTECTION IP IP67 .ACCURACY ± 0.3 % FS .MEDIUM TEMPERATURE RANGE -15 … +125 &DEG;C .RESPONSE TIME < 2 MS, (1 MS TYPICAL) .MATERIAL CONNECTION STAINLESS STEEL 1.4404 / AISI 316L .DIMENSIONS (MM) 24 X 40.9 MM .CONFORMITY EN 61326-2-3 / IEC 68-2-27 / IEC 68-2-29 / IEC 68-2-6 / UL E325110 .
