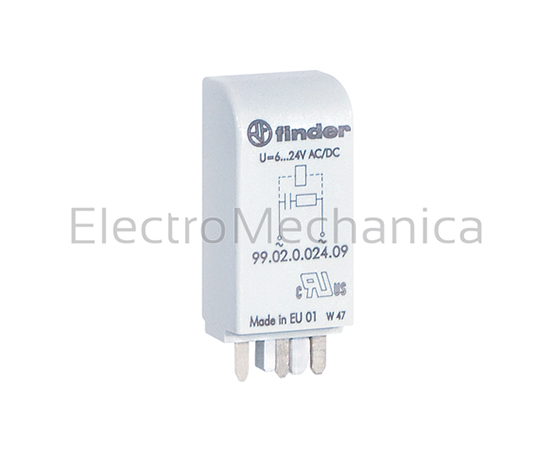

Series 99 modules for sockets Plug-in modules are convenient add-on devices for relays which offer LED indication (for ease of viewing relay status from a distance), diode protection, RC circuits, bypass and timing facilities for all socket-mounted plug-in relays. The modules simply plug into specific sockets to enhance the relays functionality. Depending on module selected, they can provide; Suppression of coil back emf on switch-off LED indication to show when the coil in energized Protection against reverse polarity applied across the coil terminals By-pass of troublesome leakage currents in the coil circuit RC circuit module RC circuit modules are used for AC and DC applications. The reverse voltage peaks of the coil are limited by the RC module to approximately 2.5 times the nominal supply voltage. Insignificant increase in release times. VOLTAGE 6 – 24 VAC/DC DESCRIPTION Plug-in RC module fo AC and DC lines LED COLOUR Green
RC MODULE 6-24VAC/DC
Miniature relays
ElectroMechanica
9902002409
