RFID series – Safety switches Magnus RFID non-contact safety sensors provide highly-reliable, tamper-proof personnel protection for monitoring protective doors, gates and guards. It uniquely identifies passive RFID transponders ensuring high coding levels and effective protection against manipulation with easy installation and safety system integration to PL e/SIL 3. Sensors can be individually coded in two different ways for appropriate tampering protection in all applications. Actuator coded: >The actuator is free and not specifically assigned to the sensor (one actuator can work with multiple sensors). Individual coding: >Programmed via teach-in and permanently assigned to sensor during set-up (the process can be repeated up to 8 times if necessary). General features: Supplied as sensor/actuator combination Indication: LED status indicators for fast diagnostics Output: 2 safety inputs and outputs and 1 diagnostic output Connection type: M12 connector – (Pigtail M12/8-pin – 150 mm) Mounting: Screw mounting S – inter-axis 22 mm / B – inter-axis 78 mm Tampering protection in accordance with DIN EN 14119, the highest in its class Can be installed individually or in series with up to 30 units (accessories required) High EMC immunity and IP67 protection ensure excellent reliability in harsh environments Resistant to aggressive media, e.g. cleaning agents used in the food and packaging industry SERIES CSCAM DESCRIPTION Actuator coding rfid safety switch SENSING DISTANCE (MM) 8…18 DIMENSIONS (MM) (H) 26 x (W) 36 x (D) 13

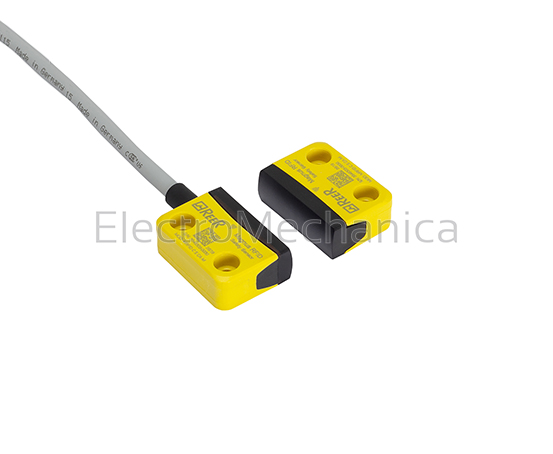

RFID S SAFETY SWTH ACTUATOR CODED
Safety switches
ElectroMechanica
1292000
