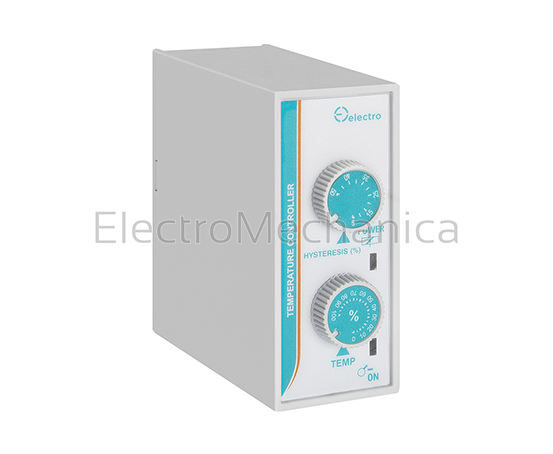

Temperature Controller The Electro 11 pin plug-in range of control and timing devices are to be installed into a standard 11 pin base making installation easy and convenient. Temperature control unit or a standard three wire PT100 resistive temperature sensor with two selectable temperature ranges. The unit can be configured for OVER or UNDER temperature and has an adjustment for temperature and hysteresis. Features: Output 10A SPDT Fail-safe control feature Power supply ON and Relay ON LEDs Potentiometer adjustable hysteresis setting Potentiometer adjustable temperature setting Direct connection to PT100 temperature sensor Rear DIP switch selection of 2 temperature ranges DESCRIPTION Temperature controller CONTACT 10A SPDT STANDARD TEMPERATURE -20°- 80°C RANGES 80°-180°C DIRECT CONNECTION PT100 RATED VOLTAGE 250V MECHANICAL LIFE 10×106 cycles PROTECTION INDEX IP IP 20 OPERATING TEMPERATURE -10 to + 50°C STORAGE TEMPERATURE -50 to + 85°C DIMENSIONS (MM) (H) 92 x (W) 36 x (D) 64
T1R/180S230A
