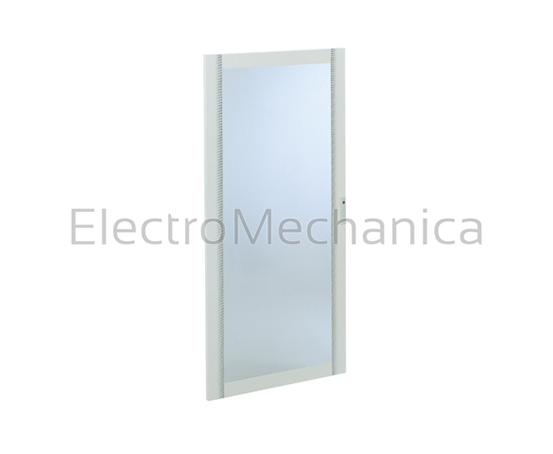

Quadro 5 floor standing distribution board system The Quadro5 system offers a sophisticated, aestheticallypleasing, protected (IP55 with door) enclosure which can be attached sidebyside to one another horizontally to satisfy most distribution board requirements. Quadro 5 accepts equipment kits for the assembly of devices and power distribution up to 630A. A complete floor-standing distribution board system is made up of the following: 1) Main structure with back plate (height) 1260 or 2010 mm / (width) 450 or 700 mm / (depth) 260 mm 2) Pair of side plates (left and right) 3) Door (plain or transparent) 4) Required equipment mounting kits (front covers and assembly rails) for MCBs (miniature circuit breakers) and modular devices for MCCBs (moulded case circuit breakers)/ Component: Enclosures height: 1260 mm (surface wall mount or floor mount with optional plinth) Main frame with back plate, removable top and bottom plates and 4 lugs for wall mounting Internal equipment height 1200 mm accepts: 8 rows (150 mm high) or 6 rows (200 mm high) 24 way Doors for 1260 mm high enclosures (can be hinged from left or right) SERIES Quadro 5 series INDEX PROTECTION IP IP55, IK10 (with door) to EN 60530 COLOUR RAL9010, (plinth RAL7042) TYPE TESTED NOMINAL CURRENT 630A, 35 kA NOMINAL INSULATION VOLTAGE Ui = 690 V DESCRIPTION Transparent sheet metal hinged door for FOR ENCLOSURE FM205 DIMENSIONS (MM) (H) 1260 x (W) 700
FM545
