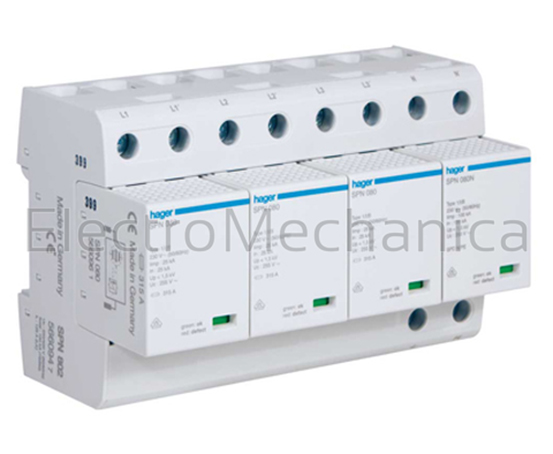

Modular surge protection devices For the protection of low voltage equipment against transient voltages and current surges from atmospheric origins (lightning) as well as transients produced by switching characteristics such as in switching of distribution networks, transformers, motors, etc. Features: Replaceable plug-in cartridges Lightning and surge-voltage protection in one device Class 1 and class 2 combined surge protection device NUMBER OF POLES 3 Phase + N UP ° 1.5kV LIMP 10/350 ¼ 100kA DESCRIPTION Class 1 + 2 modular surge protection device WIDTH IN 17.5MM 8 SANS/IEC 61643-1 CARTRIDGES Replaceable plug-in cartridges RATED OPERATIONAL VOLTAGE 230/400 V FREQUENCY 50/60 Hz OPERATING TEMPERATURE -40 to 60 °C REMOTE CONTROL Yes NEUTRAL POSITION Right APPLICATION Lighting and surge-voltage protection in one device
SPN802R
