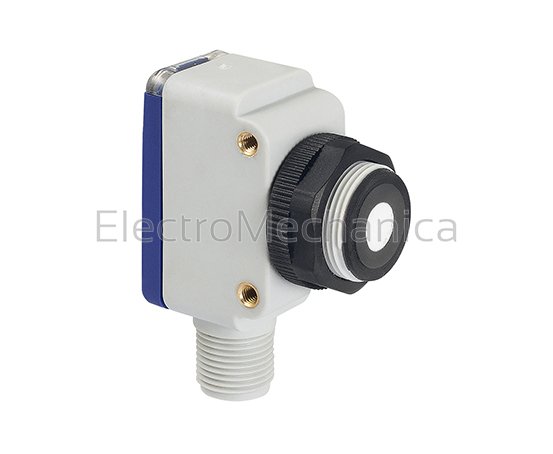

Ultrasonic sensors (IP67) Ultrasonic transducer emits an ultrasonic signal which is reflected back by the target towards the sensor. The trigger circuit measures the time between the emission and the detection of the signal. Since the speed of the ultrasonic beam in air is known, it is easy to have an indication of the presence of the target, as well as a measure of the distance between sensor and target. A Teach-in button is used to set working distance, output status (NO/NC) and slope of analog output and to change the function. All models are temperature compensated to ensure reliability throughout the entire detection range and are totally resin filled for applications subject to vibration offering an IP67 protection degree. Key features: Sensitivity: Adjustable (via external Teach-in) Ambient limits: -20 … +70°C Supply protection: Polarity reversal, transient, short circuit LED indication: Orange (output/regulation), green (echo reception) Housing material: PBT plastic (AISI 316L stainless steel available on request only) M18 UQ1 series – Cubic ultrasonic sensor with head Analog + Digital NO/NC output table SERIES UQ1 series DESCRIPTION M18 ultrasonic sensor SUPPLY PROTECTION Polarity reversal, transient INDEX PROTECTION IP IP67 LED INDICATION Orange (output/regulation), green (echo reception) HOUSING MATERIAL PBT plastic (AISI 316L stainless steel available on request) SENSITIVITY Adjustable (via external teach-in) OUTPUT Analog and Digital NO/NC output SUPPLY VOLTAGE 10 – 30 VDC SENSING DISTANCE (MM) 60…800 PNP Yes NPN No DIMENSIONS (MM) (H) 53 x (W) 20 x (D) 38 mm
UQ1C/G7-0E
