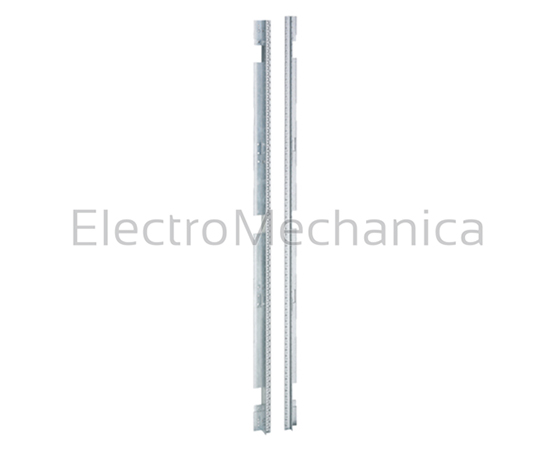

Quadro+ floor standing distribution board system Quadro + enclosure systems are supplied in a flat-pack format for ease of transportation and on-site assembly. Cabinets can be joined horizontally to form complete multi-cabinet systems without limitations. Ideal for applications up to 4000A. Basic component requirement to assemble a single floor standing cabinet: Top and bottom frames four uprights plinth side panels back panel top and bottom plates door Features: All accessories are designed for adapting enclosures to accommodate a range of components Perforations in profiles, brackets, rails are in steps 25 mm apart and accommodate cage nuts M6 (UC990) Component: Front cover fixing profile for mounting front covers without full functional uprights table SERIES Quadro + series INDEX PROTECTION IP IP55 (with door) DESCRIPTION Full vertical upright kit to accommodate rack system DIMENSIONS (MM) (H) 1900
FN696EX01
