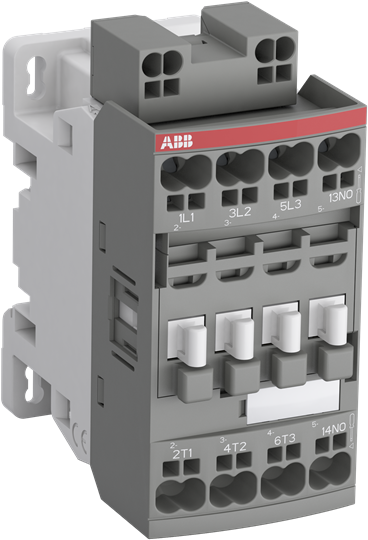

1SBL137005R1310 – AF09-30-10K-13 ABB AF 3-Pole with Push-in Spring
AF09..K…AF38..K range – AC-3 9A, AC-1 25A, 1NO aux, 100-250V AC/DC coil The AF09-30-10K-13 is a 3 pole – 690 V IEC or 600 UL contactor with 1 built-in auxiliary contact and push-in spring terminals, controlling motors up to 4 kW / 400 V AC (AC-3) or 5 hp / 480 V UL and switching power circuits up to 25 A (AC-1) or 25 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. 1SBL137005R1310 – AF09-30-10K-13 ABB AF 3-Pole with Push-in Spring is a genuine ABB electrical component designed for industrial automation, motor control, and power distribution
Technical Specifications
- Rated Current: 7.0|9.0|9.5
- Rated Voltage: 690
- Operating Voltage: 690
- Rated Operation Voltage: 690
- Control Circuit Voltage: 100 … 250
- Low Coil Consumption: No
- Number of Poles: 3P
- Rated Frequency: 50 / 60
- Operating Current AC: 7.0|9.0|9.5
- Operating Current DC: 10.0|22.0|25.0
- Power Loss: 0.1|0.15|1.14
- Ambient Air Temperature: '-60 … +80|'-40 … 70
- Pollution Degree: 3.0
- GTIN: 3471523154032.0
- Brand: ABB, ABB Group, ABB Limited
- Series: AF09
- Part Number: 1SBL137005R1310
- Continuous Free Air Thermal Current: 16.0|35.0
- IP Rating: IP20
- Breaking Capacity: 106.0|250.0
- Measuring Range: 100-250V
- General Use Rating ULC: 25.0
Key Features
- Part of the ABB AF09 range
- 100 … 250 control circuit voltage
- 7.0|9.0|9.5 rated current
- 3P pole configuration
- Coil consumption rating included for accurate panel design
- Includes ABB GTIN identification for product traceability
Applications
- Motor control panels
- Industrial automation systems
- Pump and fan control
- Electrical control cabinets
