1SBL157001R1201 – AF12-30-01-12 ABB AF 3-Pole Contactors

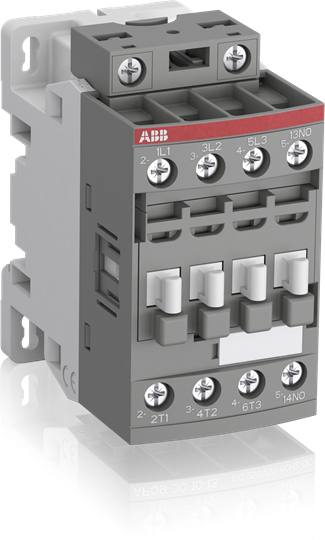

AF09…AF38 range – AC-3 12A, AC-1 28A, 1NC aux, 48-130V AC/DC coil The AF12-30-01-12 is a 3 pole – 690 V IEC or 600 UL contactor with 1 built-in auxiliary contact and screw terminals, controlling motors up to 5.5 kW / 400 V AC (AC-3) or 7-1/2 hp / 480 V UL and switching power circuits up to 28 A (AC-1) or 28 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (48-130 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. 1SBL157001R1201 – AF12-30-01-12 ABB AF 3-Pole Contactors is a genuine ABB electrical component designed for industrial automation, motor control, and power distribution
Technical Specifications
- Rated Current: 12.0|12.5|9.0
- Rated Voltage: 690
- Operating Voltage: 690
- Rated Operation Voltage: 690
- Control Circuit Voltage: 48 … 130
- Low Coil Consumption: No
- Number of Poles: 3P
- Rated Frequency: 50 / 60
- Operating Current AC: 12.0|12.5|9.0
- Operating Current DC: 15.0|24.0|27.0
- Power Loss: 0.2|0.1|1
- Ambient Air Temperature: '-25 … +60|-60 … +80|'-40 … 70
- Pollution Degree: 3.0
- GTIN: 3471523110427.0
- Brand: ABB, ABB Group, ABB Limited
- Series: AF12
- Part Number: 1SBL157001R1201
- Continuous Free Air Thermal Current: 16.0|35.0
- IP Rating: IP20
- Breaking Capacity: 106.0|250.0
- Measuring Range: 48-130V
- General Use Rating ULC: 28.0
Key Features
- Part of the ABB AF12 range
- 48 … 130 control circuit voltage
- 12.0|12.5|9.0 rated current
- 3P pole configuration
- Coil consumption rating included for accurate panel design
- Includes ABB GTIN identification for product traceability
Applications
- Motor control panels
- Industrial automation systems
- Pump and fan control
- Electrical control cabinets
