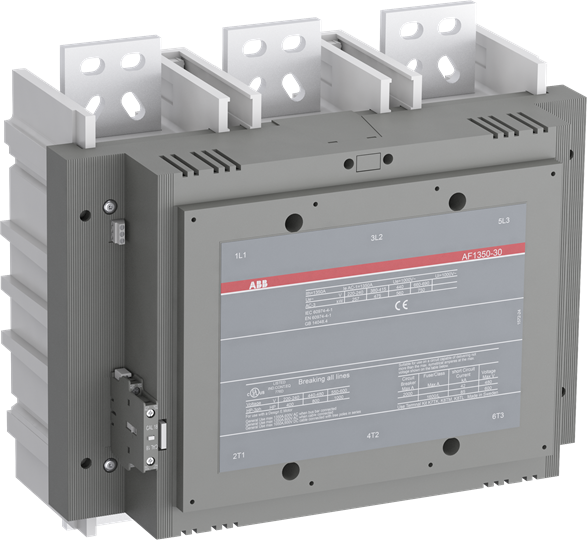

1SFL657001R7011 – AF1350-30-11 ABB AF 3-Pole Contactors
AF400…AF2650 range – AC-3 860A, AC-1 1350A, 1NO 1NC aux, 100-250V AC/DC coil The AF1350-30-11-70 is a 3 pole – 1000 V IEC or 1000 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, controlling motors up to 475 kW / 400 V AC (AC-3) or 800 hp / 480 V UL and switching power circuits up to 1350 A (AC-1) or 1350 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. 1SFL657001R7011 – AF1350-30-11 ABB AF 3-Pole Contactors is a genuine ABB electrical component designed for industrial automation, motor control, and power distribution
Technical Specifications
- Rated Current: 375.0|800.0|860.0
- Rated Voltage: 1000
- Operating Voltage: 1000
- Rated Operation Voltage: 1000
- Control Circuit Voltage: 100 … 250
- Coil Consumption: 14.1|2545.0|2865.0|75.7
- Coil Operating Limits: 0.85 x Uc Min. … 1.1 x Uc Max. (at θ ≤ 70 °C)
- Number of Poles: 3P
- Rated Frequency: 50 / 60
- Operating Current AC: 800.0|375.0|860.0
- Operating Current DC: 1350
- Power Loss: 80
- Ambient Air Temperature: '-25 … +50|'-40 … 70
- GTIN: 7320500250143.0
- Brand: ABB, ABB Group, ABB Limited
- Series: AF1350
- Part Number: 1SFL657001R7011
- Continuous Free Air Thermal Current: 1350
- IP Rating: IP20|IP00
- Breaking Capacity: 10000
- Measuring Range: 100-250V
- General Use Rating ULC: 1350.0
Key Features
- Part of the ABB AF1350 range
- 100 … 250 control circuit voltage
- 375.0|800.0|860.0 rated current
- 3P pole configuration
- Coil consumption rating included for accurate panel design
- Includes ABB GTIN identification for product traceability
Applications
- Motor control panels
- Industrial automation systems
- Pump and fan control
- Electrical control cabinets
