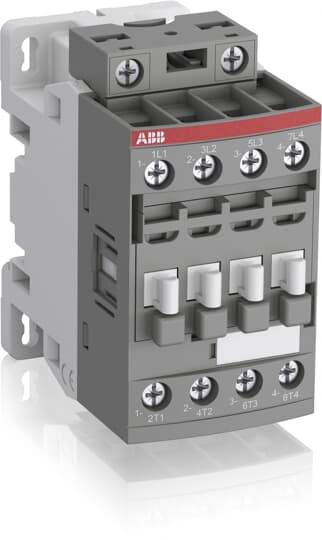

1SBL177201R1300 – AF16-40-00-13 ABB AF 4-Pole Contactors
AF09…AF38 range – AC-1 30A, 4NO, 100-250V AC/DC coil The AF16-40-00-13 is a 4 pole – 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 7.5 kW / 400 V AC (AC-3) and switching power circuits up to 30 A (AC-1) or 30 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. 1SBL177201R1300 – AF16-40-00-13 ABB AF 4-Pole Contactors is a genuine ABB electrical component designed for industrial automation, motor control, and power distribution
Technical Specifications
- Rated Current: 10.5|15.0|18.0
- Rated Voltage: 690
- Operating Voltage: 690
- Rated Operation Voltage: 690
- Control Circuit Voltage: 100 … 250
- Low Coil Consumption: No
- Number of Poles: 4P
- Rated Frequency: 50 / 60
- Operating Current AC: 10.5|15.0|18.0
- Operating Current DC: 20.0|26.0|30.0
- Power Loss: 0.35|1.2
- Ambient Air Temperature: '-60 … +80|'-40 … 70
- Pollution Degree: 3.0
- GTIN: 3471523115132.0
- Brand: ABB, ABB Group, ABB Limited
- Series: AF16
- Part Number: 1SBL177201R1300
- Continuous Free Air Thermal Current: 35
- IP Rating: IP20
- Breaking Capacity: 106.0|250.0
- Measuring Range: 100-250V
- General Use Rating ULC: 30.0
Key Features
- Part of the ABB AF16 range
- 100 … 250 control circuit voltage
- 10.5|15.0|18.0 rated current
- 4P pole configuration
- Coil consumption rating included for accurate panel design
- Includes ABB GTIN identification for product traceability
Applications
- Motor control panels
- Industrial automation systems
- Pump and fan control
- Electrical control cabinets
