1SBL236001R2000 – AF26Z-30-00-20 ABB AF..Z 3-Pole Contactors

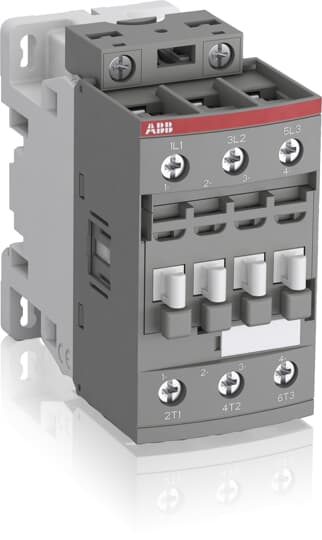

AF09Z…AF38Z range – AC-3 26A, AC-1 45A, 12-20V DC coil The AF26Z-30-00-20 is a 3 pole – 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 11 kW / 400 V AC (AC-3) or 15 hp / 480 V UL and switching power circuits up to 45 A (AC-1) or 45 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (12-20 V DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. 1SBL236001R2000 – AF26Z-30-00-20 ABB AF..Z 3-Pole Contactors is a genuine ABB electrical component designed for industrial automation, motor control, and power distribution
Technical Specifications
- Rated Current: 17.0|23.0|26.0
- Rated Voltage: 690
- Operating Voltage: 690
- Rated Operation Voltage: 690
- Control Circuit Voltage: 12 … 20
- Low Coil Consumption: Yes
- Number of Poles: 3P
- Rated Frequency: 50 / 60
- Operating Current AC: 17.0|23.0|26.0
- Operating Current DC: 32.0|40.0|45.0
- Power Loss: 0.6|1.8
- Ambient Air Temperature: '-25 … +60|-60 … +80|'-40 … 70
- Pollution Degree: 3.0
- GTIN: 3471523114104.0
- Brand: ABB, ABB Group, ABB Limited
- Series: AF26Z
- Part Number: 1SBL236001R2000
- Continuous Free Air Thermal Current: 50
- IP Rating: IP20
- Breaking Capacity: 200.0|500.0
- Measuring Range: 12-20V
- General Use Rating ULC: 45.0
Key Features
- Part of the ABB AF26Z range
- 12 … 20 control circuit voltage
- 17.0|23.0|26.0 rated current
- 3P pole configuration
- Coil consumption rating included for accurate panel design
- Includes ABB GTIN identification for product traceability
Applications
- Motor control panels
- Industrial automation systems
- Pump and fan control
- Electrical control cabinets
