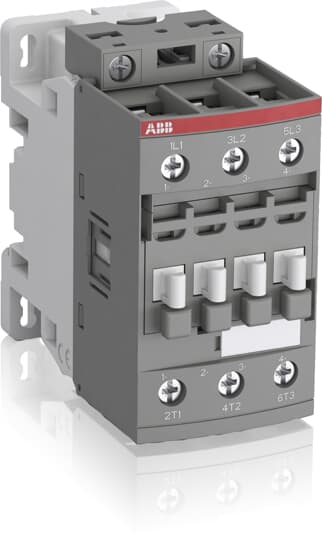

1SBL296001R2100 – AF38Z-30-00-21 ABB AF..Z 3-Pole Contactors
AF09Z…AF38Z range – AC-3 38A, AC-1 50A, 24-60V AC/DC coil The AF38Z-30-00-21 is a 3 pole – 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 18.5 kW / 400 V AC (AC-3) or 25 hp / 480 V UL and switching power circuits up to 50 A (AC-1) or 50 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V 50/60 Hz and 20-60 V DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. 1SBL296001R2100 – AF38Z-30-00-21 ABB AF..Z 3-Pole Contactors is a genuine ABB electrical component designed for industrial automation, motor control, and power distribution
Technical Specifications
- Rated Current: 24.0|33.0|38.0|40.0
- Rated Voltage: 690
- Operating Voltage: 690
- Rated Operation Voltage: 690
- Control Circuit Voltage: 20 … 60|24 … 60
- Low Coil Consumption: Yes
- Number of Poles: 3P
- Rated Frequency: 50 / 60
- Operating Current AC: 24.0|33.0|38.0|40.0
- Operating Current DC: 37.0|42.0|50.0
- Power Loss: 1.3|2.4
- Ambient Air Temperature: '-25 … +60|-60 … +80|'-40 … 70
- Pollution Degree: 3.0
- GTIN: 3471523114715.0
- Brand: ABB, ABB Group, ABB Limited
- Series: AF38Z
- Part Number: 1SBL296001R2100
- Continuous Free Air Thermal Current: 50
- IP Rating: IP20
- Breaking Capacity: 200.0|500.0
- Measuring Range: 24-60V
- General Use Rating ULC: 50.0
Key Features
- Part of the ABB AF38Z range
- 20 … 60|24 … 60 control circuit voltage
- 24.0|33.0|38.0|40.0 rated current
- 3P pole configuration
- Coil consumption rating included for accurate panel design
- Includes ABB GTIN identification for product traceability
Applications
- Motor control panels
- Industrial automation systems
- Pump and fan control
- Electrical control cabinets
