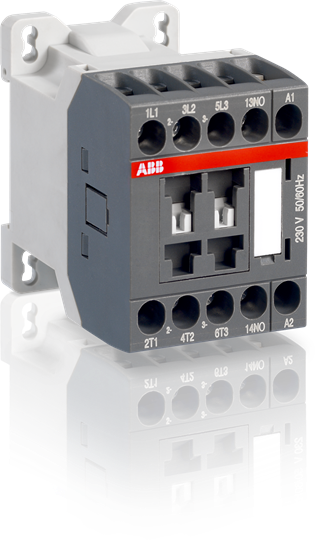

1SBL101001R2810 – AS09-30-10-28 ABB AS 3-Pole Contactors
AS09 range – AC-3 9A, AC-1 22A, 1NO aux, 400V AC coil AS09 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC or 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. The AS… series 1-stack 3-pole contactors are of the block type design. – Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) – Control circuit: AC operated with laminated magnet circuit – Accessories: a wide range of accessories is available. 1SBL101001R2810 – AS09-30-10-28 ABB AS 3-Pole Contactors is a genuine ABB electrical component designed for industrial automation, motor control, and power distribution
Technical Specifications
- Rated Current: 5.0|8.0|9.0
- Rated Voltage: 690
- Operating Voltage: 690
- Rated Operation Voltage: 690
- Control Circuit Voltage: 400
- Low Coil Consumption: No
- Rated Frequency: 50 / 60
- Operating Current AC: 5.0|8.0|9.0
- Power Loss: 0.16|1
- Ambient Air Temperature: '-25 … +60|-60 … +80|'-40 … 70
- GTIN: 3471523032286.0
- Brand: ABB, ABB Group, ABB Limited
- Series: AS09
- Part Number: 1SBL101001R2810
- Continuous Free Air Thermal Current: 10.0|22.0
- IP Rating: IP20
- Breaking Capacity: 155.0|90.0
- General Use Rating ULC: 20.0
Key Features
- Part of the ABB AS09 range
- 400 control circuit voltage
- 5.0|8.0|9.0 rated current
- Coil consumption rating included for accurate panel design
- Includes ABB GTIN identification for product traceability
Applications
- Motor control panels
- Industrial automation systems
- Pump and fan control
- Electrical control cabinets
