Flow switches (reed type) table TYPE For domestic use FITTING 1/2 inch NPT for inlet 1/2 inchNPT for outlet FLOW SWITCHES HOUSING Plastic PBT OPERATING PRESSURE 140 PSI max TEMPERATURE RANGE -10 – 105°C MEDIUM (LIQUID) Clean water CONTACT FORM Form A S.P.S.T. CANY CURRENT 1.0A SWITCH CURRENT 0.7A max SWITCH VOLTAGE 220 VAC/DC POWER RATING 50VA LEAD WIRE AWG 22, 300 mm length, U1430 lead wire free terminal OPERATING FLOW RATING 0.75 – 2L/minimum SETTING FLOW VALUE ACCURACY 10% MOUNTING ORIENTATION (VERTICAL OR HORIZONTAL) As signal of flow direction mounting orientation at any orientation MAXIMUM FLOW 10L/minimum (pressure drop is 10 PIS) WIRE COLOUR Black colour MOUNTING SHOCK 30g for 11ms duration MOUNTING VIBRATION 35 to 500Hz DURATION OF CYCLE 100.000 cycles

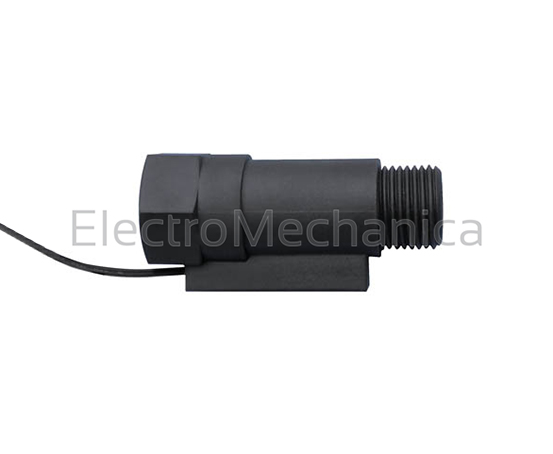

FS-902
