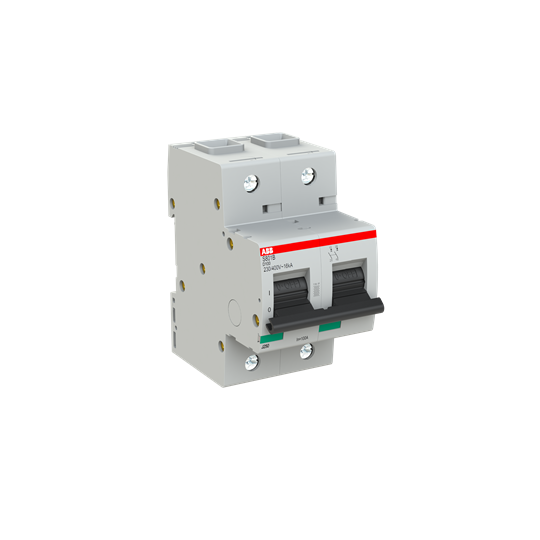

2CCS812001R0821 – S802B-D100 ABB High Perfomance MCB – S800B 16kA
2P 100A D – Curve 16kA The S802B-D100 is a 2-pole High Performance Circuit breaker with D-Dharacteristic, with cage terminal and a rated current of 100 A. It is a current limiting device with a maximum breaking capacity of 16kA at 230/400V. It can be used for voltages up to 230/400V. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S802B-D100 complies with IEC/EN 60947-2 and EN 60898-1 and allows the use for residential, commercial and industrial
S802B-D100 forms part of the ABB S800B range.
Technical Specifications
- Rated Current: 100
- Rated Voltage: 150|400
- Number of Poles: 2P
- Ambient Air Temperature: '-25 … +60
- Power Loss: 16|8
- GTIN: 7612271416157.0
- Brand: ABB, ABB Group, ABB Limited
- Series: S800B
- Part Number: 2CCS812001R0821
- Operating Voltage: 150|400
- Rated Operation Voltage: 150|400
- Rated Frequency: 50 / 60
- IP Rating: IP20
- Breaking Capacity: 16kA
- Pollution Degree: 3.0
- Ambient Temperature: '-25…60
Key Features
- Part of the ABB S800B range
- 100 rated current
- '-25 … +60 ambient air temperature rating
- Includes ABB GTIN identification for product traceability
Applications
- Motor protection circuits
- Control panels
- Pump and fan starters
- Industrial motor applications
