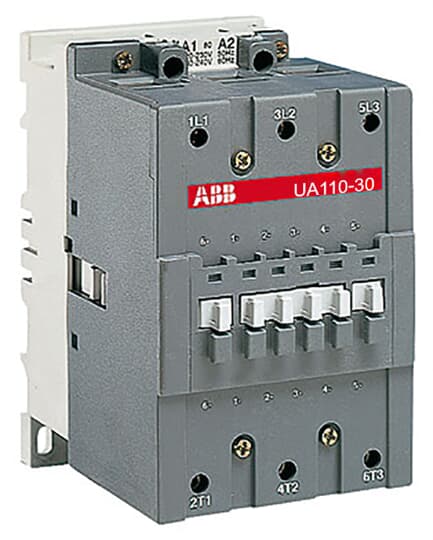

1SFL451024R8500 – UA110-30-00RA, 380-400V AC coil ABB UA..RA Capacitor Contactors
UA110 range – 80kvar 400V, 380-400V AC coil A 3-phase Contactor suitable for Capacitor switching application. Maximum permissible peak current 100 times the nominal RMS current. Operated with a control voltage, versions from 24…….690 V 1SFL451024R8500 – UA110-30-00RA, 380-400V AC coil ABB UA..RA Capacitor Contactors is a genuine ABB electrical component designed for industrial automation, motor control, and power distribution
Technical Specifications
- Rated Current: 100.0|110.0|30.0|82.0
- Rated Voltage: 1000
- Operating Voltage: 1000
- Rated Operation Voltage: 1000
- Control Circuit Voltage: 380 … 400|400 … 415
- Coil Consumption: 22.0|26.0|350.0|450.0
- Coil Operating Limits: 0.85 x Uc Min. … 1.1 x Uc Max. (at θ ≤ 70 °C)
- Number of Poles: 3P
- Rated Frequency: 50
- Operating Current AC: 100.0|110.0|30.0|82.0
- Power Loss: 7.5
- Ambient Air Temperature: '-25 … +50|-60 … +80|'-40 … 70
- GTIN: 7320500260562.0
- Brand: ABB, ABB Group, ABB Limited
- Series: UA110
- Part Number: 1SFL451024R8500
- Continuous Free Air Thermal Current: 160
- IP Rating: IP20|IP10
- Breaking Capacity: 1160.0|800.0
- Measuring Range: 380-400V
Key Features
- Part of the ABB UA110 range
- 380 … 400|400 … 415 control circuit voltage
- 100.0|110.0|30.0|82.0 rated current
- 3P pole configuration
- Coil consumption rating included for accurate panel design
- Includes ABB GTIN identification for product traceability
Applications
- Motor control panels
- Industrial automation systems
- Pump and fan control
- Electrical control cabinets
