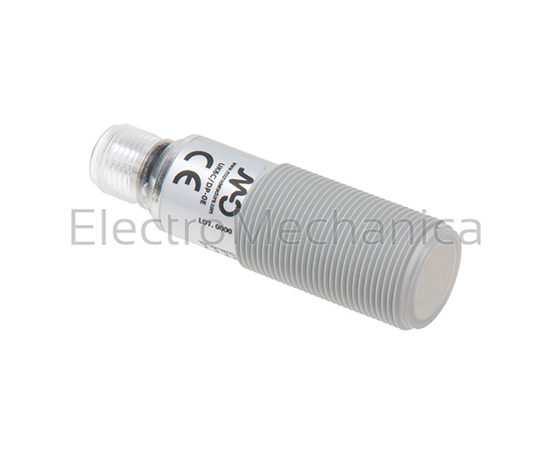

UK6 series cylindrical ultrasonic sensors UK series M18 cylindrical ultrasonic sensors sense in direct diffuse mode. A teach-in button is used to set working distance, output status (NO/NC) and slope of analog output and to change the function. All models are temperature compensated to ensure reliability throughout the entire detection range and are totally resin filled for applications subject to vibration offering an IP67 protection degree. Key features: Digital output Analogue output M18 diffuse sensors with short housing SERIES UK6 series DESCRIPTION M18 ultrasonic sensor SUPPLY PROTECTION Polarity reversal, transient INDEX PROTECTION IP IP67 LED INDICATION Orange (output/regulation), green (echo reception) HOUSING MATERIAL PBT plastic (AISI 316L stainless steel available on request) SENSITIVITY Adjustable (via external teach-in) OUTPUT Analog output SUPPLY VOLTAGE 15 – 30 VDC SENSING DISTANCE (MM) 40…300 PNP No NPN No NO No NC No 0…10V Yes 4…20mA No CONNECTOR M12 plug (4 pin) DIMENSIONS (MM) M18 x 60.3 mm
UK6A/H1-0EUL
