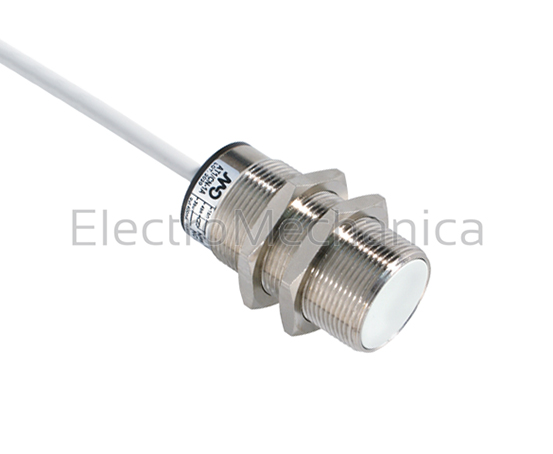

VBR series vibration and inclination sensor New VBR series shock and vibration sensor incorporates a MEMS 3-axis accelerometer to monitor all accelerations and vibrations. Designed to be easy to use without any special training for operators. General features: M18 housing Analog + Digital NO/NC output AISI316L stainless steel housing (front included) Fully programmable in all its functions, thresholds, alarms and node addresses SERIES VBR series DESCRIPTION Vibrations and inclination sensor SUPPLY PROTECTION Polarity reversal, transient INDEX PROTECTION IP IP67 HOUSING MATERIAL AISI316L stainless steel housing (front included) PROGRAMMABLE OPERATING RANGE Programmable operating range: 2g, 4g, 8g, 16g REFERENCE AXIS 3 (X,Y,Z) FREQUENCY RANGE 0 … 400Hz DIGITAL OUTPUT 1 x RS485 (addressable with max 128 nodes) ANALOGUE OUTPUT 1 x analogue output (programmable voltage or current) SUPPLY VOLTAGE 24 VDC OPERATING RANGE 2g…16g PNP No NPN No NO No NC No 0…10V Yes 4…20mA Yes
VBR1/D0-3A
