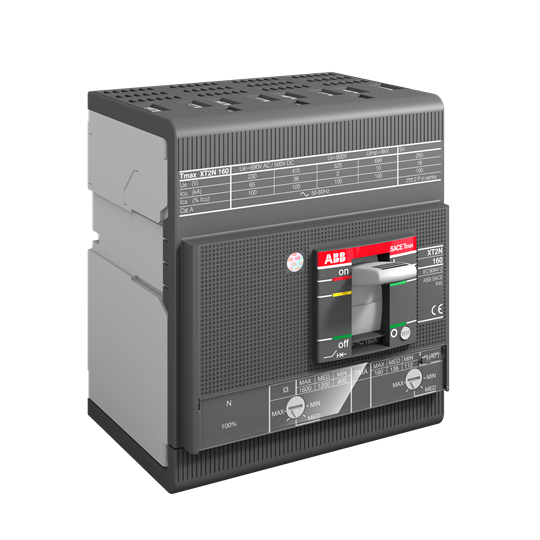

1SDA067038R1 – XT2N 160 TMA 80-800 4p F F ABB MCCB – Tmax XT
36kA 4 Pole MCCB Thermal Magnetic C.BREAKER TMAX XT2N 160 FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 80 I3=400…800 A 1SDA067038R1 – XT2N 160 TMA 80-800 4p F F ABB MCCB – Tmax XT is a genuine ABB electrical component designed for industrial automation, motor control, and power distribution
XT2N 160 TMA 80-800 4p F F forms part of the ABB SACE Tmax XT range.
Technical Specifications
- Rated Current: 80
- Breaking Capacity: 36kA
- Number of Poles: 4P
- Rated Voltage: 690
- Operating Voltage: 500|690
- Rated Operation Voltage: 500|690
- Rated Frequency: 50 / 60
- Power Loss: 5.8
- GTIN: 8015644009441.0
- Brand: ABB, ABB Group, ABB Limited
- Series: SACE Tmax XT
- Part Number: 1SDA067038R1
- Measuring Range: 400…800 A
Key Features
- Part of the ABB SACE Tmax XT range
- 80 rated current
- 36kA breaking capacity
- 4P pole configuration
- Includes ABB GTIN identification for product traceability
Applications
- Electrical distribution boards
- Circuit protection systems
- Commercial installations
- Industrial power systems
Downloads & Product Resources
Datasheet | ABB Product Page | Declaration of Conformity | RoHS Declaration | Dimension Drawings
