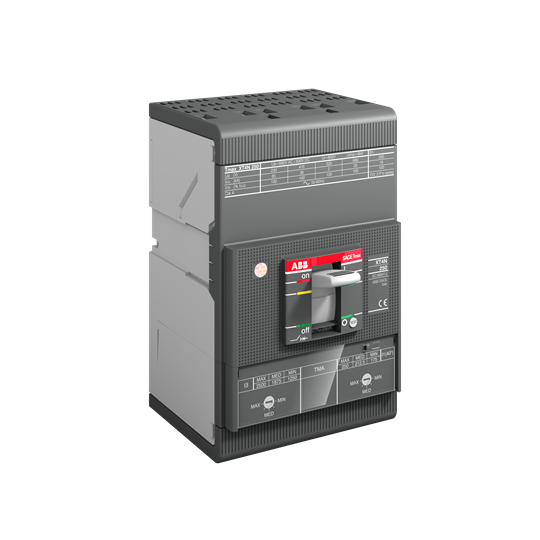

1SDA068088R1 – XT4N 160 TMA 125-1250 3p F F ABB MCCB – Tmax XT
36kA 3 Pole MCCB Thermal Magnetic C.BREAKER TMAX XT4N 160 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 125 I3=625…1250 A 1SDA068088R1 – XT4N 160 TMA 125-1250 3p F F ABB MCCB – Tmax XT is a genuine ABB electrical component designed for industrial automation, motor control, and power distribution
XT4N 160 TMA 125-1250 3p F F forms part of the ABB SACE Tmax XT range.
Technical Specifications
- Rated Current: 125
- Breaking Capacity: 36kA
- Number of Poles: 3P
- Rated Voltage: 690
- Operating Voltage: 690|750
- Rated Operation Voltage: 690|750
- Rated Frequency: 50 / 60
- Power Loss: 7.44
- GTIN: 8015644695811.0
- Brand: ABB, ABB Group, ABB Limited
- Series: SACE Tmax XT
- Part Number: 1SDA068088R1
- Measuring Range: 625…1250 A
Key Features
- Part of the ABB SACE Tmax XT range
- 125 rated current
- 36kA breaking capacity
- 3P pole configuration
- Includes ABB GTIN identification for product traceability
Applications
- Electrical distribution boards
- Circuit protection systems
- Commercial installations
- Industrial power systems
Downloads & Product Resources
Datasheet | ABB Product Page | Declaration of Conformity | RoHS Declaration | Dimension Drawings
