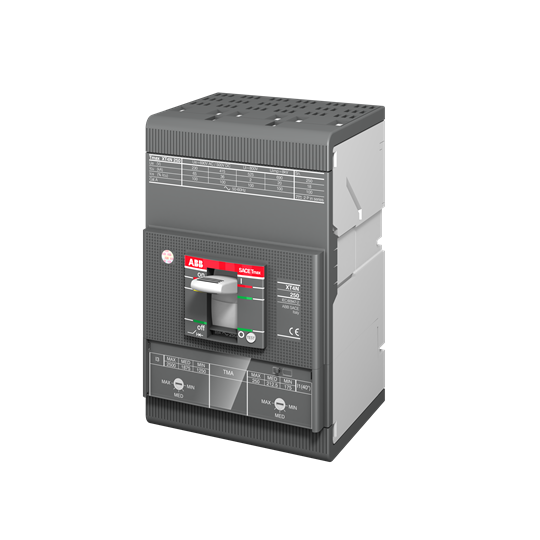

1SDA107704R1 – XT4V 160 MA 20 Im=100…200 3p F F ABB MCCB – Tmax XT
150kA 3 Pole MCCB Magnetic C.BREAKER TMAX XT4V 160 FIXED THREE-POLE WITH FRONT TERMINALS AND MAGNETIC RELEASE MA Iu 10 A I3=100…200 A 1SDA107704R1 – XT4V 160 MA 20 Im=100…200 3p F F ABB MCCB – Tmax XT is a genuine ABB electrical component designed for industrial automation, motor control, and power distribution
XT4V 160 MA 20 Im=100…200 3p F F forms part of the ABB SACE Tmax XT range.
Technical Specifications
- Rated Current: 20
- Breaking Capacity: 150kA
- Number of Poles: 3P
- Rated Voltage: 690|750
- Operating Voltage: 690|750
- Rated Operation Voltage: 690|750
- Power Loss: 2.6
- GTIN: 8056221028486.0
- Brand: ABB, ABB Group, ABB Limited
- Series: SACE Tmax XT
- Part Number: 1SDA107704R1
- Measuring Range: 100…200 A
Key Features
- Part of the ABB SACE Tmax XT range
- 20 rated current
- 150kA breaking capacity
- 3P pole configuration
- Includes ABB GTIN identification for product traceability
Applications
- Electrical distribution boards
- Circuit protection systems
- Commercial installations
- Industrial power systems
