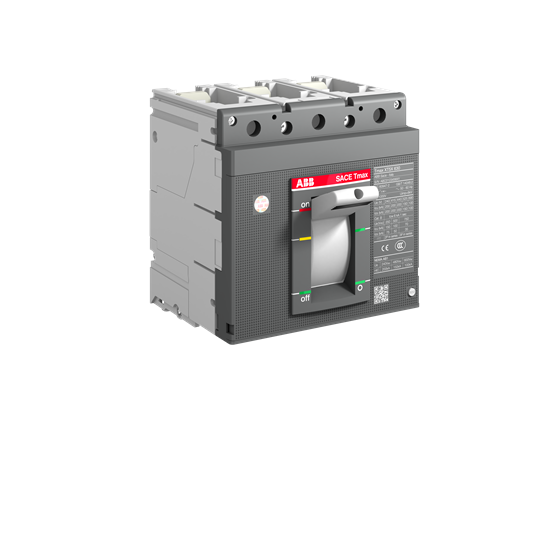

1SDA100567R1 – XT5V 630 Breaking Part 3p F F ABB MCCB – Tmax XT
150kA 3 Pole MCCB Breaking part BREAKING PART TMAX XT5V 630 FIXED THREE-POLE WITH FRONT TERMINALS 1SDA100567R1 – XT5V 630 Breaking Part 3p F F ABB MCCB – Tmax XT is a genuine ABB electrical component designed for industrial automation, motor control, and power distribution
XT5V 630 BREAKING PART 3p F F forms part of the ABB SACE Tmax XT range.
Technical Specifications
- Rated Current: 150kA
- Breaking Capacity: 150kA
- Number of Poles: 3P
- Rated Voltage: 690|750
- Operating Voltage: 690|750
- Rated Operation Voltage: 690|750
- GTIN: 8056221006439.0
- Brand: ABB, ABB Group, ABB Limited
- Series: SACE Tmax XT
- Part Number: 1SDA100567R1
Key Features
- Part of the ABB SACE Tmax XT range
- 150kA rated current
- 150kA breaking capacity
- 3P pole configuration
- Includes ABB GTIN identification for product traceability
Applications
- Electrical distribution boards
- Circuit protection systems
- Commercial installations
- Industrial power systems
