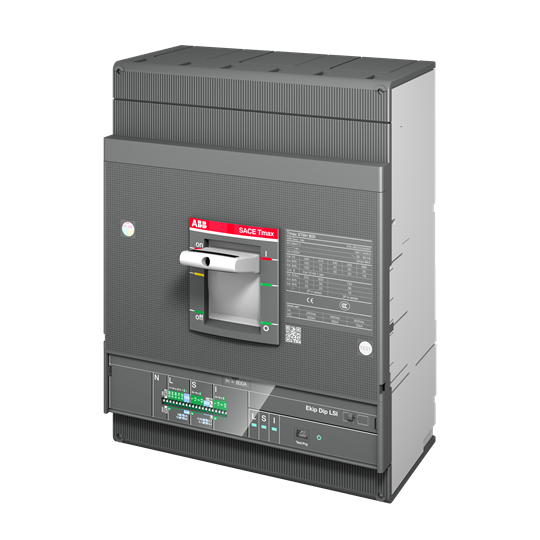

1SDA107563R1 – XT6N 800 Ekip Dip LSI In=630 3p F F ABB MCCB – Tmax XT
36kA 3 Pole MCCB Electronic C.BREAKER TMAX XT6N 800 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP DIP LSI R 630 1SDA107563R1 – XT6N 800 Ekip Dip LSI In=630 3p F F ABB MCCB – Tmax XT is a genuine ABB electrical component designed for industrial automation, motor control, and power distribution
XT6N 800 Ekip Dip LSI In=630 3p F F forms part of the ABB SACE Tmax XT range.
Technical Specifications
- Rated Current: 630
- Breaking Capacity: 36kA
- Number of Poles: 3P
- Rated Voltage: 690
- Operating Voltage: 690
- Rated Operation Voltage: 690
- Rated Frequency: 50 / 60
- Power Loss: 33.2
- GTIN: 8015644101763.0
- Brand: ABB, ABB Group, ABB Limited
- Series: SACE Tmax XT
- Part Number: 1SDA107563R1
Key Features
- Part of the ABB SACE Tmax XT range
- 630 rated current
- 36kA breaking capacity
- 3P pole configuration
- Includes ABB GTIN identification for product traceability
Applications
- Electrical distribution boards
- Circuit protection systems
- Commercial installations
- Industrial power systems
