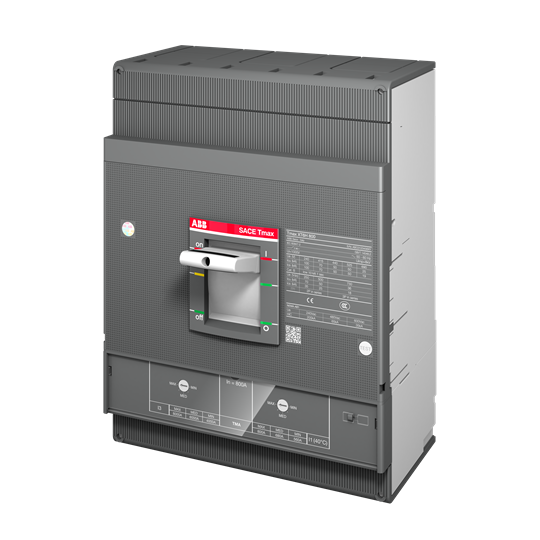

1SDA107574R1 – XT6S 800 TMA 630-6300 3p F F ABB MCCB – Tmax XT
50kA 3 Pole MCCB Thermal Magnetic C.BREAKER TMAX XT6S 800 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 630 I3=3150…6300 1SDA107574R1 – XT6S 800 TMA 630-6300 3p F F ABB MCCB – Tmax XT is a genuine ABB electrical component designed for industrial automation, motor control, and power distribution
XT6S 800 TMA 630-6300 3p F F forms part of the ABB SACE Tmax XT range.
Technical Specifications
- Rated Current: 630
- Breaking Capacity: 50kA
- Number of Poles: 3P
- Rated Voltage: 690|750
- Operating Voltage: 690|750
- Rated Operation Voltage: 690|750
- Rated Frequency: 50 / 60
- Power Loss: 34.4
- GTIN: 8015644102272.0
- Brand: ABB, ABB Group, ABB Limited
- Series: SACE Tmax XT
- Part Number: 1SDA107574R1
Key Features
- Part of the ABB SACE Tmax XT range
- 630 rated current
- 50kA breaking capacity
- 3P pole configuration
- Includes ABB GTIN identification for product traceability
Applications
- Electrical distribution boards
- Circuit protection systems
- Commercial installations
- Industrial power systems
