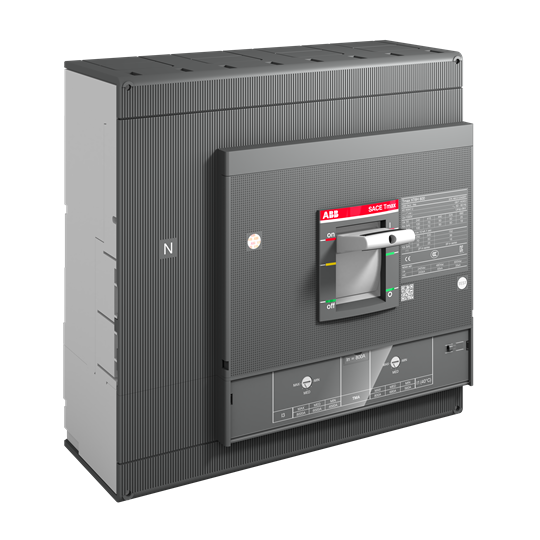

1SDA100753R1 – XT6S 800 TMA 800-8000 4p F F In N=100% ABB MCCB – Tmax XT
50kA 4 Pole MCCB Thermal Magnetic C.BREAKER TMAX XT6S 800 FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE FOUR-POLE IN AC-DC TMA R 800 I3=4000…8000 A FULLY RATED NEUTRAL 1SDA100753R1 – XT6S 800 TMA 800-8000 4p F F In N=100% ABB MCCB – Tmax XT is a genuine ABB electrical component designed for industrial automation, motor control, and power distribution
XT6S 800 TMA 800-8000 4p F F InN=100%In forms part of the ABB SACE Tmax XT range.
Technical Specifications
- Rated Current: 800
- Breaking Capacity: 50kA
- Number of Poles: 4P
- Rated Voltage: 690|750
- Operating Voltage: 690|750
- Rated Operation Voltage: 690|750
- Power Loss: 54.2
- GTIN: 8056221008075.0
- Brand: ABB, ABB Group, ABB Limited
- Series: SACE Tmax XT
- Part Number: 1SDA100753R1
- Measuring Range: 4000…8000 A
Key Features
- Part of the ABB SACE Tmax XT range
- 800 rated current
- 50kA breaking capacity
- 4P pole configuration
- Includes ABB GTIN identification for product traceability
Applications
- Electrical distribution boards
- Circuit protection systems
- Commercial installations
- Industrial power systems
